| Main Specifications | |
| Projection Technology | 3LCD |
| Standard Resolution | WUXGA /WXGA |
| Light Source | Laser |
| Brightness (MKT) | 5500-6000lm |
| Throw Ratio | 0.44:1 |
| Lens Shift | N/A |
| Power Range | AC100~240V |
| Operating Altitude | Below 3000m |
| Operating Temperature | 0m≤Altitude≤1700m，Ambient0℃~40℃; 1700m＜Altitude＜3000m，Ambient 0℃~40℃ |
| Dimensions(W * D * H)(mm) | 405*404*164 |
| Net Weight(kg) | 8.1kg |
| Accessories | Power cable / Remote control / Batteries / HDMI cable |

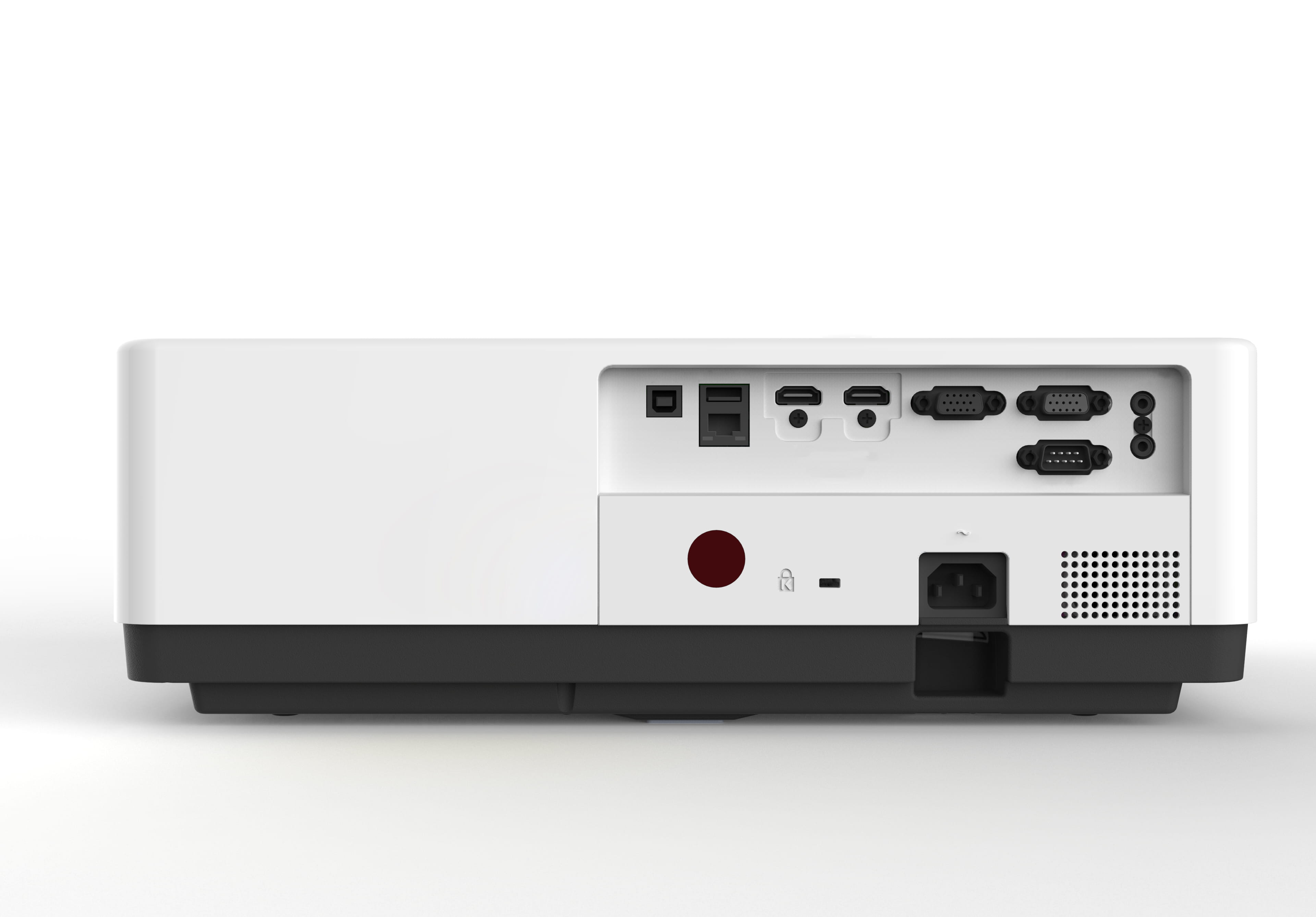

| Interface Parameters | |
| VGA IN | *1 |
| HDMI IN | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| HDBaseT | Optional |
| Audio in | *1 |
| VGA OUT | *1 |
| Audio out | *1 |
| RS232 | *1 |
| RJ45 | *1(Control) |
| USB-B | *1 (Upgrade) |
