| Main Specifications | |
| Projection Technology | 3LCD |
| Standard Resolution | XGA/WXGA/WUXGA |
| Light Source | Laser |
| Brightness (MKT) | 5000-5500lm |
| Throw Ratio | 1.46-1.76 |
| 1.08-1.76 | |
| 1.35-1.63 | |
| 1.2-2.0 | |
| 0.48:1 | |
| 0.679-0.821 | |
| 0.44:1 | |
| Lens Shift | N/A V:0%~+45% V:0%~+60% |
| Power Range | AC100~240V |
| Operating Altitude | Below 3000m |
| Operating Temperature | 0℃~40℃ |
| Dimensions(W * D * H)(mm) | 390*294*128 390*319*144(including lens protrusion) |
| Net Weight(kg) | 5-5.5kg |
| Accessories | Power cable/Remote control/Batteries/HDMI cable/Quick start guide |

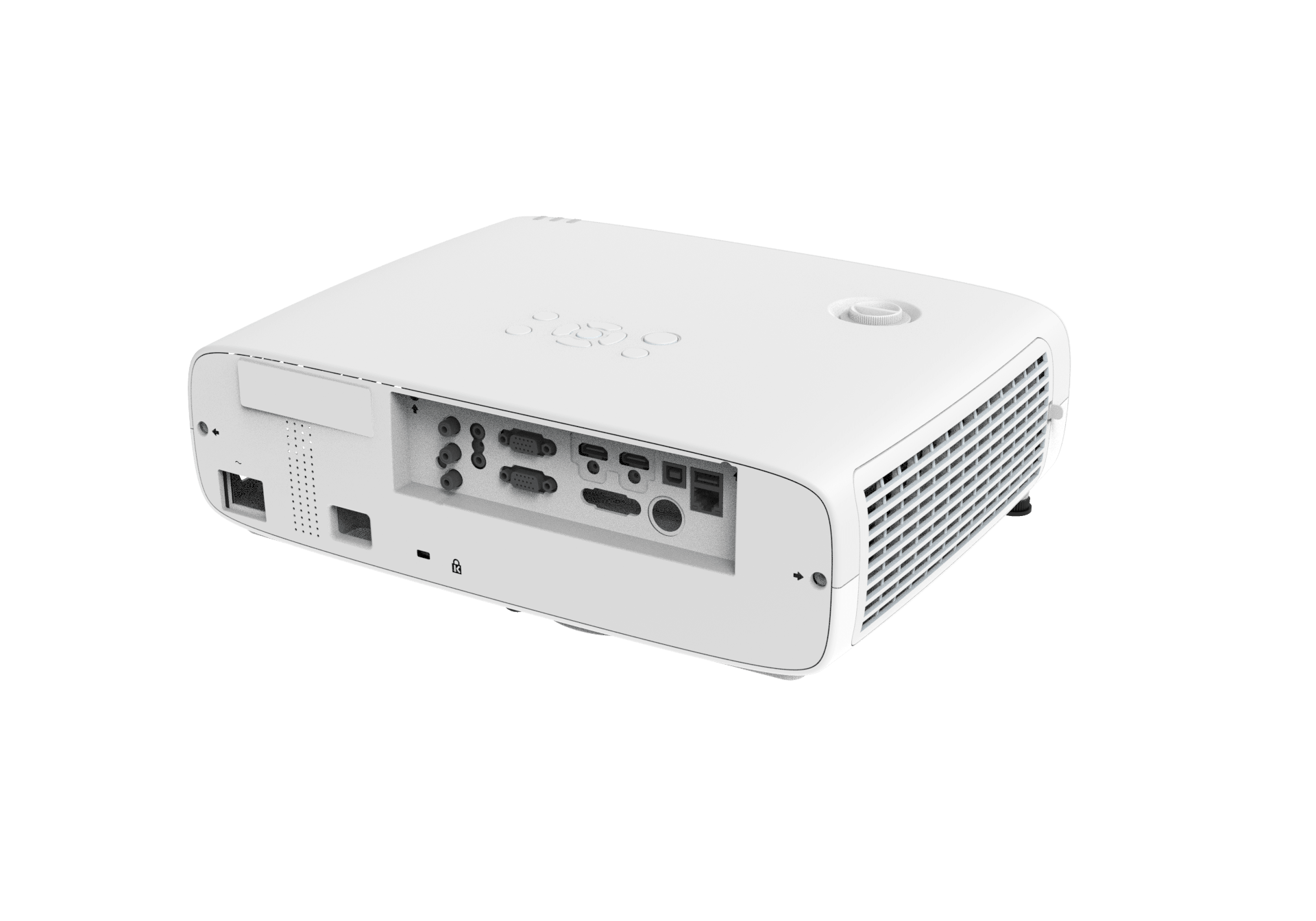

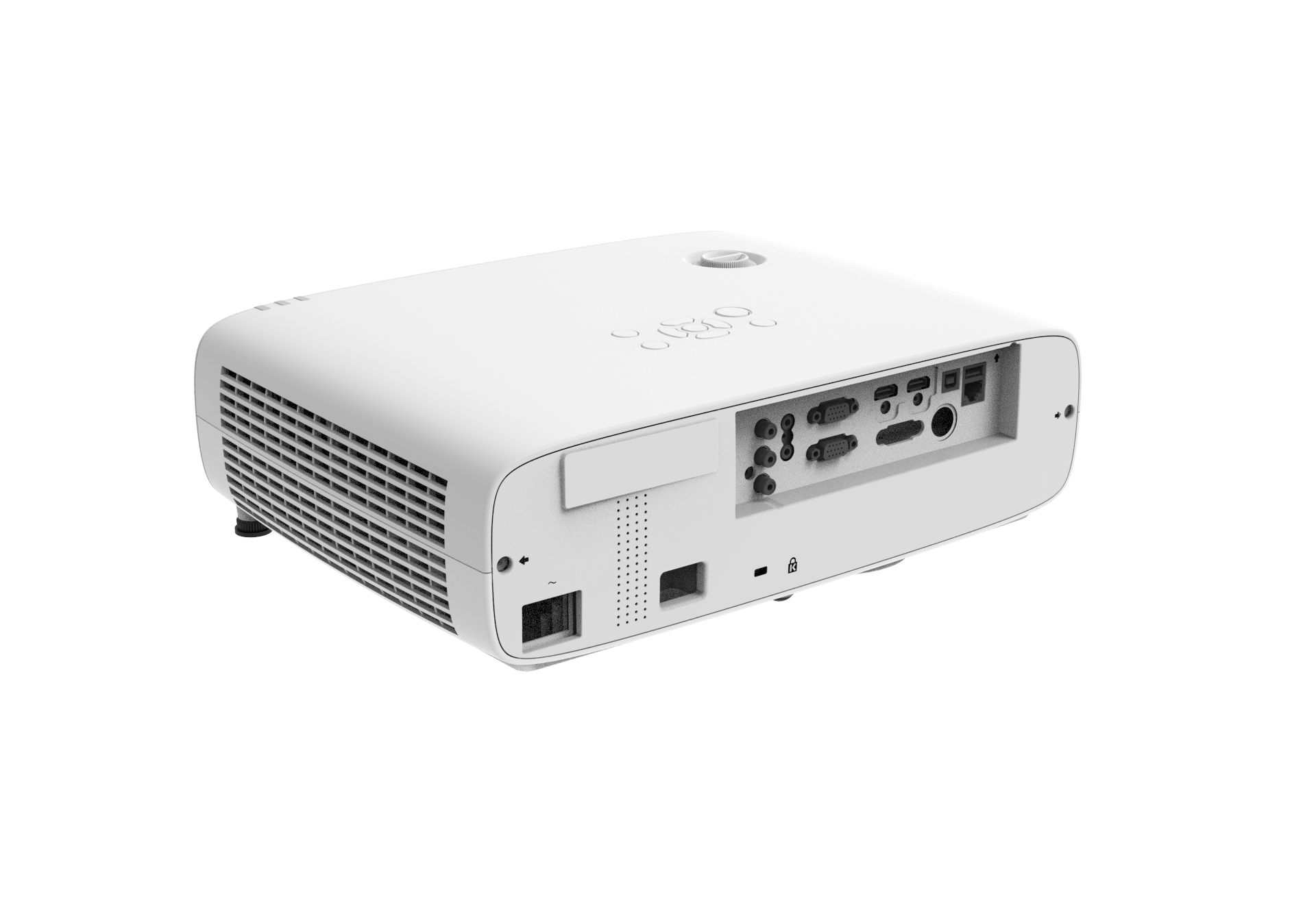

| Interface Parameters | |
| VGA IN | *1 |
| HDMI IN | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| HDBaseT | *1(Optional) |
| Audio in | *1 |
| VGA OUT | *1 |
| Audio out | *1 |
| RS232 | *1 |
| RJ45 | *1(Control) |
| Main Specifications | |
| Projection Technology | 3LCD |
| Standard Resolution | 4K Enhancement |
| Light Source | Laser |
| Brightness (MKT) | 4500-5000lm |
| Throw Ratio | 1.08-1.76 |
| 1.35-1.63 | |
| 1.2-2.0 | |
| 0.679-0.821 | |
| 0.44:1 | |
| Lens Shift | N/A V:0%~+45% V:0%~+60% |
| Power Range | AC100~240V |
| Operating Altitude | Below 3000m |
| Operating Temperature | 0℃~40℃ |
| Dimensions(W * D * H)(mm) | 390*294*128 390*319*144(including lens protrusion) |
| Net Weight(kg) | 5-5.5kg |
| Accessories | Power cable/Remote control/Batteries/HDMI cable/Quick start guide |
| Interface Parameters | |
| VGA IN | N/A |
| HDMI IN | *2 |
| USB-A | *2 |
| USB-B | N/A |
| RJ45 | *1(Display) |
| HDBaseT | *1(Optional) |
| Audio in | N/A |
| VGA OUT | N/A |
| Audio out | *1 |
| RS232 | *1 |
| RJ45 | *1(Control) |
