| Main Specifications | |
| Projection Technology | 3LCD |
| Standard Resolution | WUXGA |
| Light Source | Laser |
| Brightness (MKT) | 6500-8000lm |
| Throw Ratio | 1.2-2.0 |
| 1.08-1.76 | |
| 0.68-0.82 | |
| Lens Shift | Yes |
| Power Range | AC100~240V |
| Operating Altitude | Below 3000m |
| Operating Temperature | 0m≤Altitude≤1700m，Ambient0℃~50℃; 1700m＜Altitude＜3000m，Ambient 0℃~40℃ |
| Dimensions(W * D * H)(mm) | 405*358*137 |
| Net Weight(kg) | STD: 7.9kg ST: 8.1kg |
| Accessories | Power cable / Remote control / Batteries / HDMI cable |

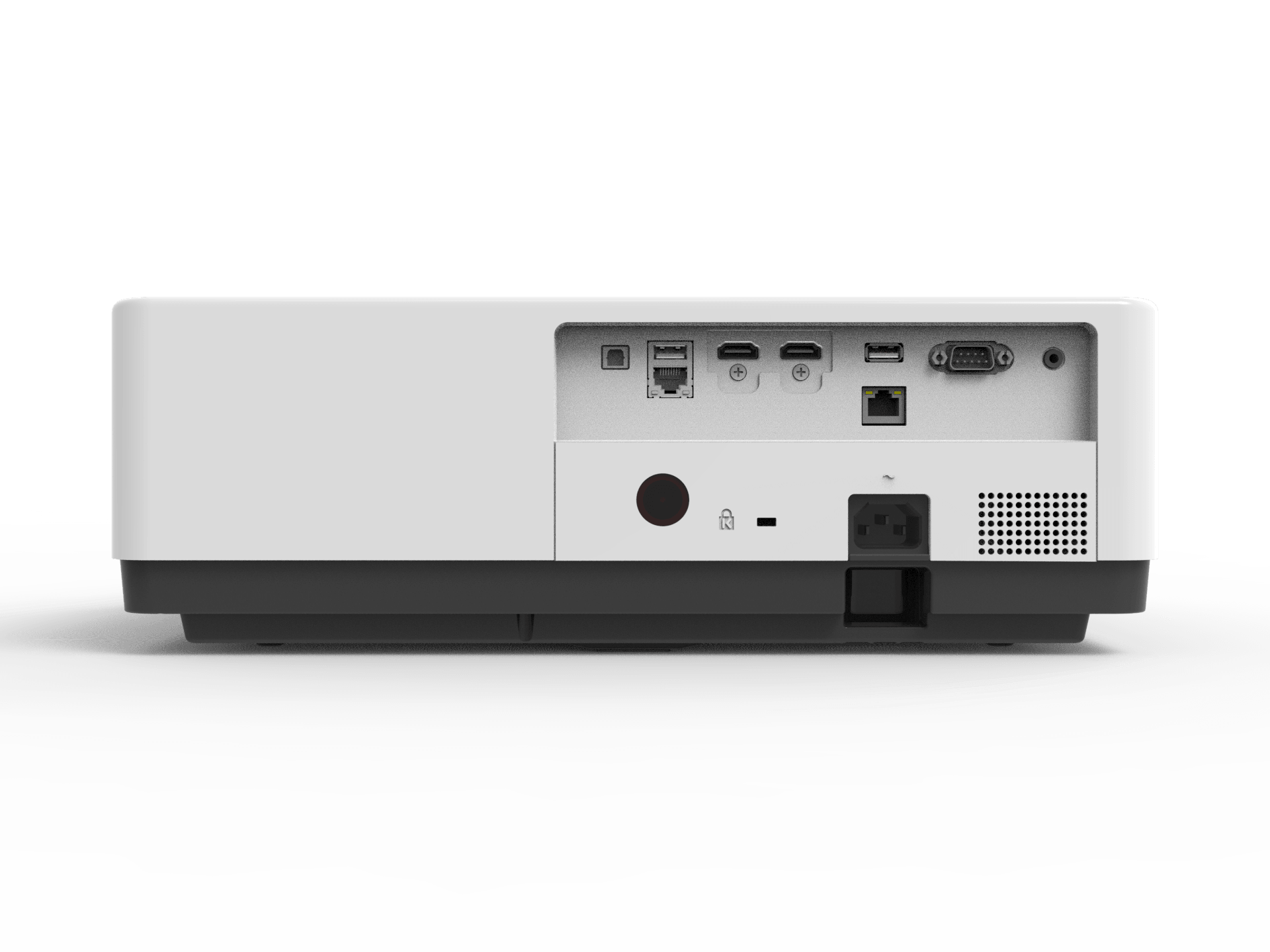

| Interface Parameters | |
| VGA IN | *1 |
| HDMI IN | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| HDBaseT | Optional |
| Audio in | *1 |
| VGA OUT | *1 |
| Audio out | *1 |
| RS232 | *1 |
| RJ45 | *1(Control) |
| USB-B | *1(Upgrade) |
| Main Specifications | |
| Projection Technology | 3LCD |
| Standard Resolution | 4K Enhancement |
| Light Source | Laser |
| Brightness (MKT) | 7000-7200lm |
| Throw Ratio | 1.2-2.0 |
| 1.08-1.76 | |
| Lens Shift | Yes |
| Power Range | AC100~240V |
| Operating Altitude | Below 3000m |
| Operating Temperature | 0m≤Altitude≤1700m，Ambient0℃~50℃; 1700m＜Altitude＜3000m，Ambient 0℃~40℃ |
| Dimensions(W * D * H)(mm) | 405*358*137 |
| Net Weight(kg) | STD: 7.9kg ST: 8.1kg |
| Accessories | Power cable / Remote control / Batteries / HDMI cable |
| Interface Parameters | |
| VGA IN | N/A |
| HDMI IN | *2 |
| USB-A | *2 |
| USB-B | N/A |
| RJ45 | *1 |
| HDBaseT | Optional |
| Audio in | N/A |
| VGA OUT | N/A |
| Audio out | *1 |
| RS232 | *1 |
| RJ45 | *1(Control) |
| USB-B | N/A |
